By Kahuna - 9 Years Ago
|
I'd like to know what AUTOMATIC transmissions are out there that have the Y Block bolt pattern?
Other than the Fordomatic I now have.
FMX? Mercomatic? Anything else
Also, any that are Aluminum cased?
Thanks
Jim
|
|
By MoonShadow - 9 Years Ago
|
|
There is an aluminum Ford-O-Matic but its a true 2 speed no shifting down to 1st. If you want better setup there are a lot of adapters out there. John Mummert http://www.ford-y-block.com he has adapters for C-4 swaps. There are also adapters for AOD's if you fancy an overdrive. Chuck
|
|
By miker - 9 Years Ago
|
More choices than you wanted
http://www.transmissionadapters.com/ford_y_block.htm
|
|
By Kahuna - 9 Years Ago
|
Hey Moon
What years was the 2 speed used?
Thanks
Jim
|
|
By MoonShadow - 9 Years Ago
|
|
I'm not exactly sure but it was the later years around 1960 on I believe.
|
|
By carl - 9 Years Ago
|
MoonShadow (1/15/2016)
I'm not exactly sure but it was the later years around 1960 on I believe. I had a 59 Edsel 292 that had the 2 speed trans,not sure if that was the 1st year for it though Carl
|
|
By paul2748 - 9 Years Ago
|
1959 was the first year. I don't know when they stopped them, but there were two speed C-4's in 64. Around 64 was the first 3 speeds I think
|
|
By Kahuna - 9 Years Ago
|
Last question for the night:
Moon
I really like the scoop on your 56. What's it from?
Very cool
Jim
|
|
By MoonShadow - 9 Years Ago
|
|
The carb bonnet is an old McCullouch product. Came with some blower parts.
|
|
By Kahuna - 9 Years Ago
|
The hood scoop?
Thanks
Jim
|
|
By MoonShadow - 9 Years Ago
|

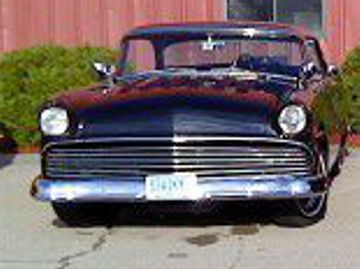

A bit confusing, I don't have a hood scoop on the Vicky. The hood has been modified with the mascot removed and louvered. I used the hood latch section from a 55 Ford and the 55 grill surround to give the tube grill a more finished look.
Chuck
|
|
By Small block - 9 Years Ago
|
Kahuna (1/14/2016)
I'd like to know what AUTOMATIC transmissions are out there that have the Y Block bolt pattern? Other than the Fordomatic I now have. FMX? Mercomatic? Anything else Also, any that are Aluminum cased? Thanks Jim
There is a stock ford bell that was used in 1964 ford pickups to bolt 292 to a C-4
3 speed they are rare but I seen one at a swap meet last summer The part number is C4AP-7976-c!
|
|
By Kahuna - 9 Years Ago
|
Thanks Small Block
Also, Moon I was talking about the hood scoop in the avatar.
This could go on forever
Regards
Jim
|
|
By MoonShadow - 9 Years Ago
|
|
No problem, are you talking about the engine, under hood picture or the car profile. Chuck
|
|
By Kahuna - 9 Years Ago
|
Ha Ha Ha
It appears to me that in the pic in the avatar that there is a hood scoop installed? Maybe it's just the lighting and again I am confused.

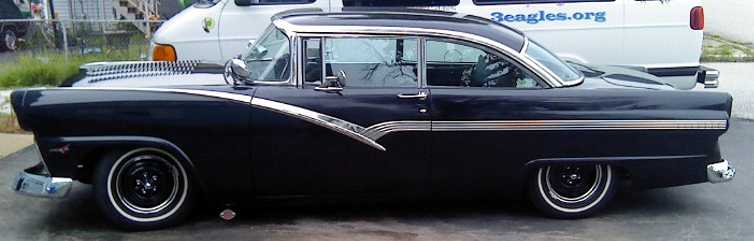

I apologize. I am talking about the car pictured (not avatar) next to the engine picture that appears
Jim
|
|
By MoonShadow - 9 Years Ago
|
I thought it might be that picture. It is a reflection.
|
|
By Kahuna - 9 Years Ago
|
Thanks for the clairification. My eyes are getting old.
Very nice car
Jim
|
|
By MoonShadow - 9 Years Ago
|
|
No problem, everything I've got is getting old.
|
|
By Cliff - 9 Years Ago
|
|
Hi, has anybody else seen a factory bell housing to put a c4 behind a Y block?
|
|
By Small block - 9 Years Ago
|
Cliff (1/20/2016)
Hi, has anybody else seen a factory bell housing to put a c4 behind a Y block?
Do a search for Transmission Supply C4-C5 Bell application and you will find this bell listed under 292 and also for 272!
It was available at one time there is no way of being sure of finding one now!
|
|
By carl - 9 Years Ago
|
Cliff (1/20/2016)
Hi, has anybody else seen a factory bell housing to put a c4 behind a Y block? C1 AP 7976 A-1 & C1AP 7976 A-2 are aluminum y block bellhousings that ford o matic,cruise o matic and FMX will bolt up to. Carl
|
|
By PF Arcand - 9 Years Ago
|
Just a note for anyone that might have Y-blk automatic bell housings around that are not needed. Bristol Services in Costa Mesa CA is advertising for them & Flex plates also. contact; garycroan@gmail.com or 949-722-1122... Not sure why he hasn't advertised here? Was advised of the site some time ago..
|
