By mainline - 10 Years Ago
|
I am trying to compensate for the added pulley offset required when using an Innovators West damper. Could someone please tell me the thickness of the Thunderbird water pump spacer. Thank You in advance. Craig
|
|
By charliemccraney - 10 Years Ago
|
1" Probably too thick and that spacer is not the best idea for cooling. It will be best to space out the pulley or find a pulley that will work or have a custom pulley made.
You using this for street or strip?
|
|
By MarkMontereyBay - 10 Years Ago
|
|
Mine measures 1 inch.
|
|
By 5d6fairlane - 10 Years Ago
|
|
I bought one of the innovators west dampers but decided to go with one of the steel ones from john m. As I recall it moves the pulleys forward.
|
|
By pegleg - 10 Years Ago
|
|
I have the water pump spacers in aluminum if you go that way.
|
|
By mainline - 10 Years Ago
|
charliemccraney (3/8/2015)
1" Probably too thick and that spacer is not the best idea for cooling. It will be best to space out the pulley or find a pulley that will work or have a custom pulley made. You using this for street or strip?
Thanks Charlie, The engine that I will eventually bebuilding will be for propelling my 1955 Mainline in short distance sprints of440 yards. I currently have about 1 3/4 of an inch of misalignment. With a water pump spacer and Innovators Westshorting the removable damper hub, I can get them aligned.
|
|
By mainline - 10 Years Ago
|
5d6fairlane (3/9/2015)
I bought one of the innovators west dampers but decided to go with one of the steel ones from john m. As I recall it moves the pulleys forward.
Yes the lower pulley is set forward. I have not measured howmuch compared to factory damper.
|
|
By mainline - 10 Years Ago
|
pegleg (3/9/2015)
I have the water pump spacers in aluminum if you go that way.
HiFrank, I would be interested in one of your spacers. I already have one of yourwater pumps and timing covers. The spacer would blend in with the rest of thealuminum. I will try to PM you. I am not sure of what kind of success I willhave, if you do not receive one from me, would you please send a PM to me?
|
|
By charliemccraney - 10 Years Ago
|
Are you using any other non standard parts for the car? Maybe it's the pulley you're using?
Innovators West also sell a 5.5" dia. 1/2" groove v belt pulley which is very thin. 5.5" should be great for strip, not for street. With a thin pulley, it should be .500 to .750 difference from stock.
|
|
By Vic Correnti - 10 Years Ago
|
|
The day I removed the Tbird spacer was the last time I had overheating issues with the stock water pumps. An aluminum spacer to move the pulley forward on the water pump would make more sense to me.
|
|
By pegleg - 10 Years Ago
|
|
Mainline, cell is 574 606 4811. Have 4 left over. won't be any more. 65$ plus shipping. BUT, listen to what they're saying. It was necessary on the T' birds because of the Front mounts. If you don't really need it save your money!
|
|
By charliemccraney - 10 Years Ago
|

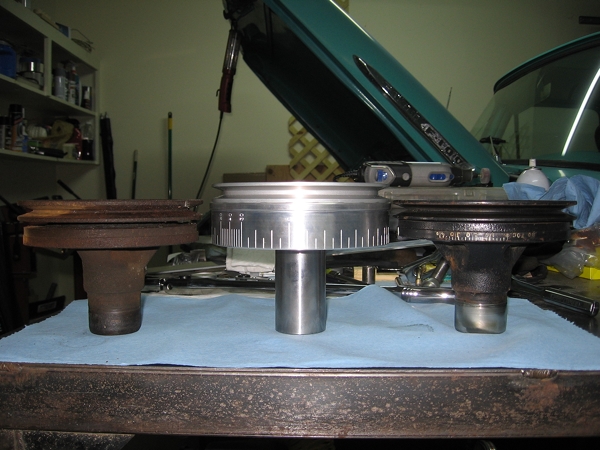

This is an IW damper with a 3/8" groove pulley, 6.5" diameter. compared to the single groove I've been using and a rusty worn out one I have. With this pulley, The difference is about .570" or about 9/16".
|
