Kiaora, I am assembling my 292 engine and I am wondering about the thin locking nuts that screw on top of the Bigend bolt nut. I have tightened the nuts to 45ftlb. Do I nreally need to reinstall the thin spring type hexagonal locking nut. OK I'll confess, I lost one and cannot get one to replace it. So is it ok to reuse the ones that I have or do I really need them at all? and what torque setting should they be tightened to.
|
|
Group: Forum Members
Last Active: 10 Years Ago
Posts: 118,
Visits: 7.9K
|

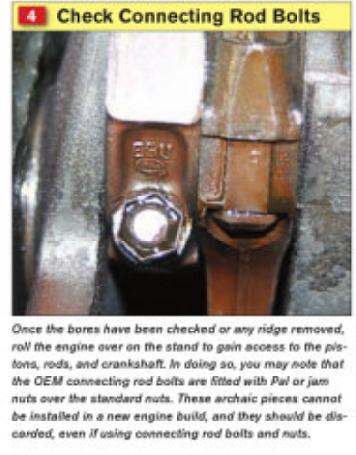

Here is what the new Y Block book states.
A note on adding images: When I selected it - clicked once - and clicked open it did not show up. I double clicked the image from the Browse box and it did. Go figure??? I had to Snagit the image and save it as you can't copy from the ebook. Or print. I really dislike Google Play. My wife has a Kindle Fire and it works great with ebooks. I am on Firefox. HTH
Norfolk, VA
"MABLE"
1956 Thunderbird Green / Brown Interior (ZE-XG)
"MEAN GREEN"
1956 Mainline (FG-BE)
|
|
Group: Forum Members
Last Active: 4 Years Ago
Posts: 37,
Visits: 704
|
Thanks Jim, I wonder if that last sentence is supposed to say "even if Reusing the Old connecting rod bolts and nuts" ?? So, I guess that means I don't need them? |
|
Group: Administrators
Last Active: 10 hours ago
Posts: 7.4K,
Visits: 205.6K
|
Pal nuts as used on the connecting rod nuts are a one time use only item. Because they get distorted when originally tightened, they must be replaced if contemplating putting a set of them back on an engine upon reassembly. Because of this, they are typically just left off when the engines are serviced. A properly tightened connecting rod bolt will not need any kind of jam nut to keep the fastener from loosening.
  Lorena, Texas (South of Waco)
|
|
Group: Forum Members
Last Active: 4 Years Ago
Posts: 37,
Visits: 704
|
Thanks Ted.
|
