Bent push rods

Posted By Hollow Head 12 Years Ago
You don't have permission to rate!
Author
Message
Hollow Head
Posted 12 Years Ago
View Quick Profile
Supercharged

Supercharged (1.4K reputation)Supercharged (1.4K reputation)Supercharged (1.4K reputation)Supercharged (1.4K reputation)Supercharged (1.4K reputation)Supercharged (1.4K reputation)Supercharged (1.4K reputation)Supercharged (1.4K reputation)Supercharged (1.4K reputation)

Group: Forum Members
Last Active: 3 days ago
Posts: 1.0K, Visits: 3.7K

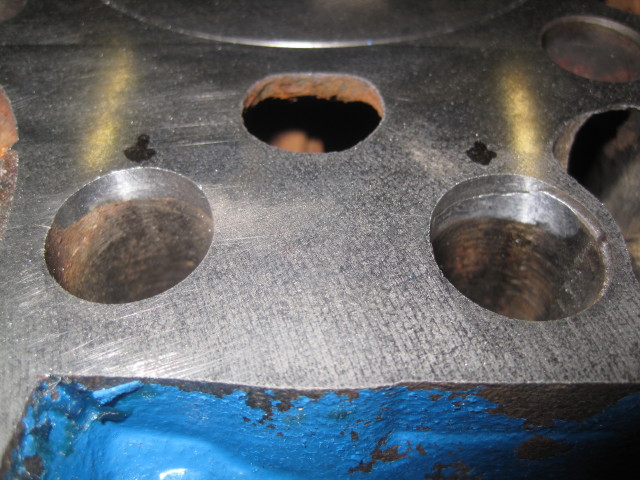

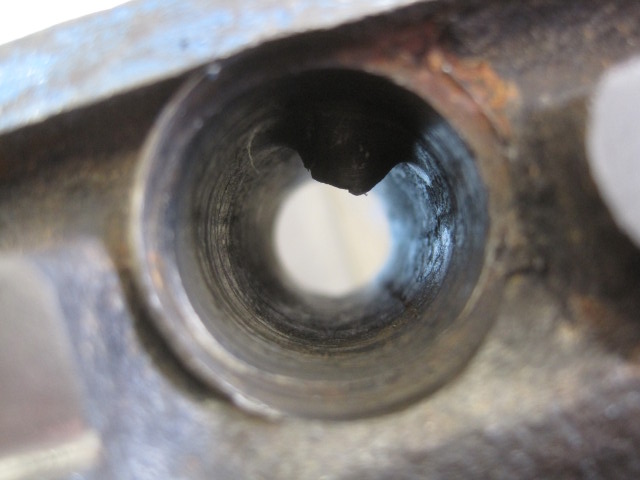

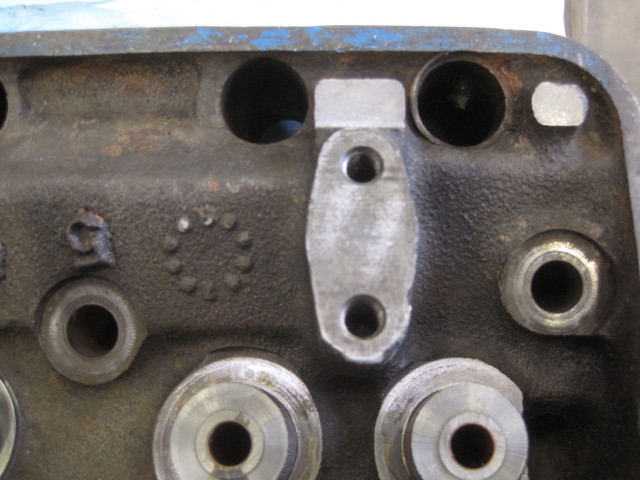

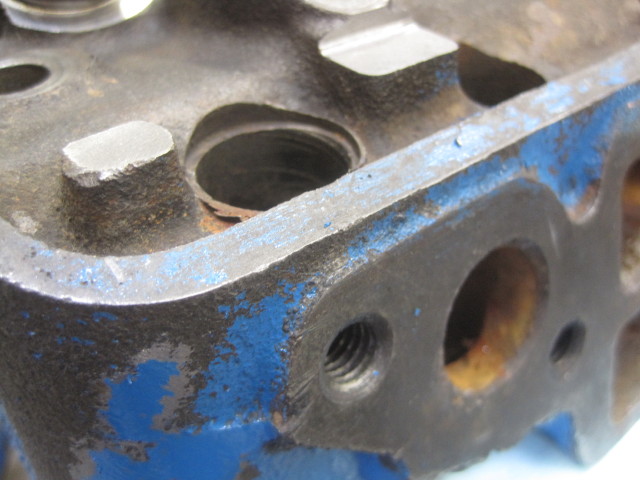

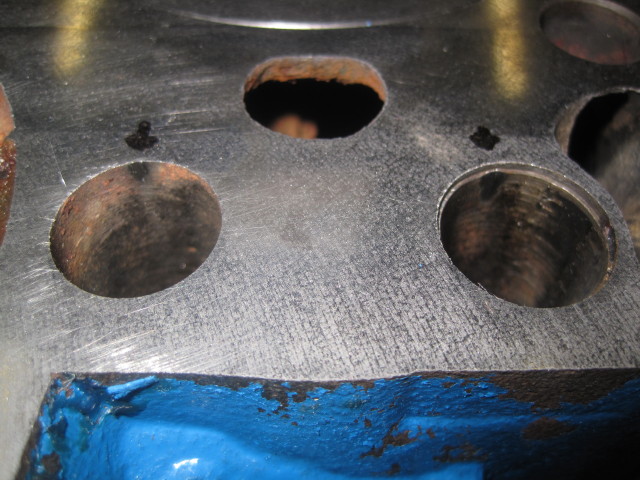

About issue of bending push rods. I now found one possible reason as our pushrods had been rubbing push rod holes in the heads. I now opened those holes a little. Is this a conflict with Harland Sharp roller rockers and ECZ-C heads or something else, I don't know. Also, with these heads we had one push rod hole fixed with tube in it and also with huge bulge due too long intake attaching bolt screwn in someday. That may have also hit to one push rod. I just grinded that off now. Has this fix been done at the factory is not sure, but it looks like it could have been fixed there. Here is pics about my findings...

http://forums.y-blocksforever.com/Uploads/Images/f7f122af-f90a-4530-ae1e-2a3f.JPG

http://forums.y-blocksforever.com/Uploads/Images/175bd521-a2b9-49d4-b458-684b.JPG

http://forums.y-blocksforever.com/Uploads/Images/34d8e2c3-bfad-4a1a-b255-fefe.JPG

http://forums.y-blocksforever.com/Uploads/Images/1eadabab-b325-4b7e-a201-5c00.JPG

http://forums.y-blocksforever.com/Uploads/Images/636970f4-8893-4c3c-b891-ac73.JPG

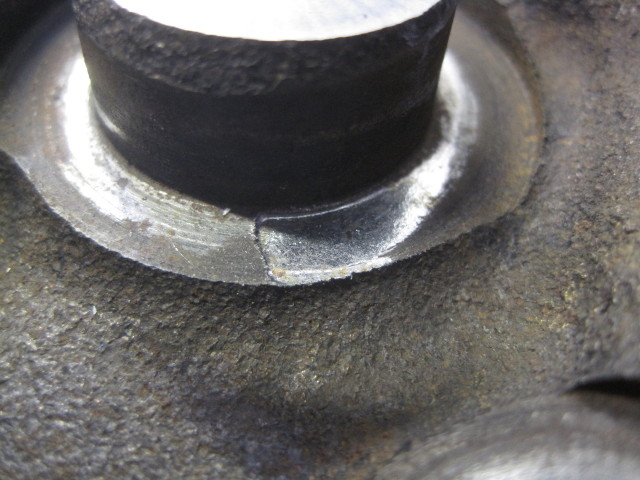

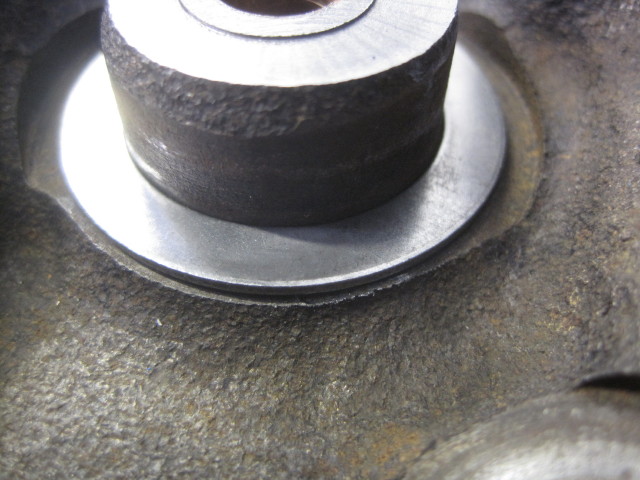

And then picture of valve spring base which is rubbed by the spring. I will now put a hard steel spacer under the valve springs to avoid that...

http://forums.y-blocksforever.com/Uploads/Images/b93a6c30-ddae-4da2-9647-242c.JPG

http://forums.y-blocksforever.com/Uploads/Images/4f788358-c25d-4416-83f1-c6e0.JPG

Next race 18th of May this year if snow has melted from the Motopark track Wink.

http://forums.y-blocksforever.com/uploads/images/e3fd9a79-e7c3-47ff-a648-8cd5.jpg Seppo from Järvenpää, Finland
